Set up a CI/CD Pipeline for your Web app on AWS with Github Actions

#AWS #Vue #Github
, March 25, 2020 · 5 min read

Photo by Tim Swaan on Unsplash

Introduction

Nat Friedman described Github Actions as an API “… to orchestrate any workflow, based on any event, while GitHub manages the execution, provides rich feedback and secures every step along the way. With GitHub Actions, workflows and steps are just code in a repository, so you can create, share, reuse, and fork your software development practices.”

You can read his full blog post here.

This blog post explains how to set up a GitHub action within 5 minutes to automatically deploy your hosted web app on S3 and create an automatic CloudFront cache Invalidation. You will be able to deploy any app that runs on S3 be it React, Vue, Angular or svelte.

This Action is using 2 community-built actions from jakejarvis and chetan.


TL;DR

If you don´t want to read the complete post. Copy the action from this Github repository and add at the Github secrets to your repository. If you fail, come back and read the article!


Requirements

This post assumes that you have already deployed a working web app on s3 with CloudFront distribution before. So the requirements are a working web app, with build script in the package.json, a static hosting bucket on s3, a working CloudFront distribution and IAM User with programmatic access and enough permissions to deploy to s3 and create a CloudFront chance invalidation

Now let’s get started with the tutorial.


Create folders & files

The first thing we have to do is create the folder .github with a folder workflows in it on your project root level. Afterward create the deploy-app-on-s3.yaml file in it.

Creating the Github Action

Copy this code snippet into the deploy-app-on-s3.yaml file.

1 name: deploy-app-on-s3
2
3 on:
4 pull_request:
5 branches: [master]
6 types: [closed]
7 jobs:
8 deploy:
9 runs-on: ubuntu-latest
10 env:
11 AWS_S3_BUCKET_NAME: your-bucket-name
12 AWS_CF_DISTRIBUTION_ID: your-cloudfront-id
13 strategy:
14 matrix:
15 node-version: [10.x]
16 steps:
17 - uses: actions/checkout@master
18 - name: Use Node.js ${{ matrix.node-version }}
19 uses: actions/setup-node@v1
20 with:
21 node-version: ${{ matrix.node-version }}
22 - name: Install Dependencies
23 run: npm install
24 - name: Build Application
25 run: npm run-script build
26 - uses: jakejarvis/s3-sync-action@master
27 name: Upload App to S3 Bucket
28 with:
29 args: --follow-symlinks --delete --cache-control max-age=2592000
30 env:
31 AWS_S3_BUCKET: ${{ env.AWS_S3_BUCKET_NAME }}
32 AWS_ACCESS_KEY_ID: ${{ secrets.AWS_ACCESS_KEY_ID }}
33 AWS_SECRET_ACCESS_KEY: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
34 AWS_REGION: 'eu-central-1'
35 SOURCE_DIR: 'dist'
36 - name: Create CloudFront Cache Invalidation
37 uses: chetan/invalidate-cloudfront-action@master
38 env:
39 DISTRIBUTION: ${{ env.AWS_CF_DISTRIBUTION_ID }}
40 PATHS: '/*'
41 AWS_REGION: 'eu-central-1'
42 AWS_ACCESS_KEY_ID: ${{ secrets.AWS_ACCESS_KEY_ID }}
43 AWS_SECRET_ACCESS_KEY: ${{ secrets.AWS_SECRET_ACCESS_KEY }}

This code snippet describes the action. The Github Action will be triggered after your pull request on the master branch is successfully closed. You can change this by adjusting the on section in the snippet. If you want a different trigger for your action look here. It could be possible that you have to adapt for example the SOURCE_DIR from “dist” to your build directory or the AWS_REGION.

Adjust environment variables

The third step is to adjust all environment variables. In this action, we have the bucket name AWS_S3_BUCKET_NAME and the CloudFront distribution ID AWS_CF_DISTRIBUTION_ID as an environment variable. The value of AWS_S3_BUCKET_NAME is the name of your S3 Bucket you can find in the management console and the value of AWS_CF_DISTRIBUTION_ID is the id of the CloudFront distribution.

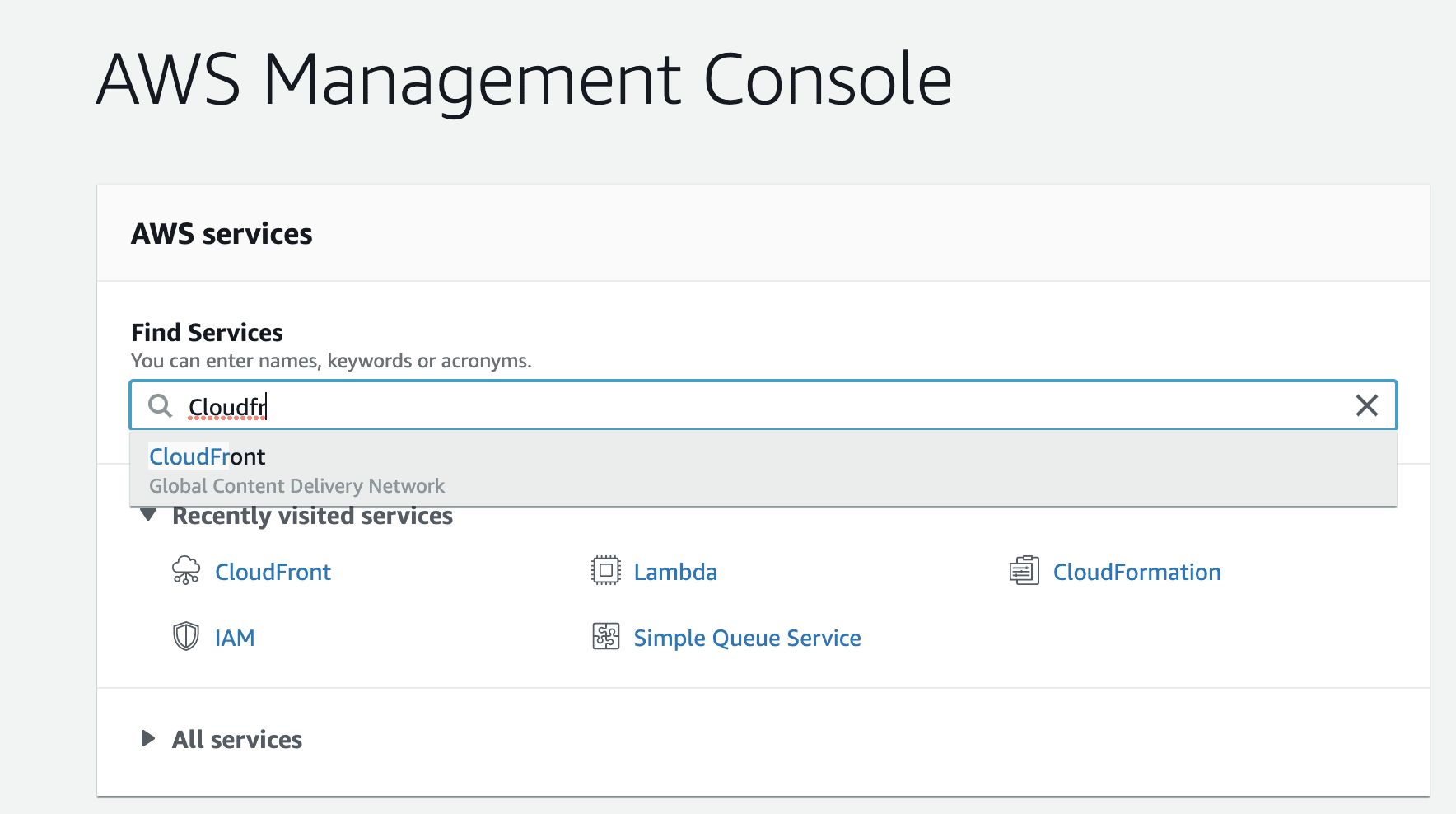

You can get the ID for the AWS_CF_DISTRIBUTION_ID variable of the CloudFront distribution via the management console by navigating to the “CloudFront” service and then going on “Distribution”.

AWS Management Console

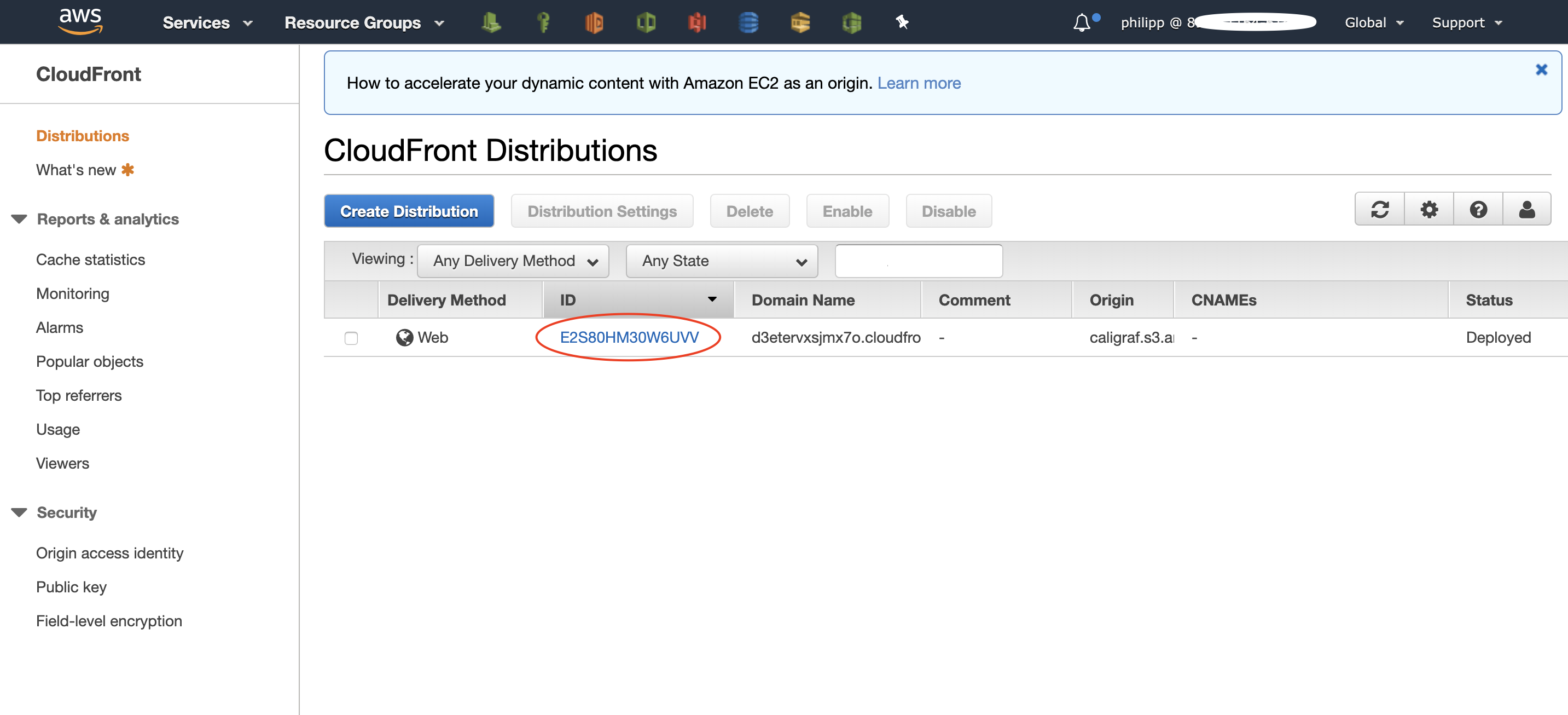

The table has a column “ID” with the value we need. You can recognize the correct row by identifying your S3 Bucket name in the column “origin”.

AWS Cloudfront Service

Add secrets to your repository

The fourth and last step is to add secrets to your Github repository. For this Github Action, we need the access key ID and secret access key from IAM User as secrets called AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY.

If you are not sure on how to create an IAM user for the access key ID and secret access key you can read here.

Adding the secrets

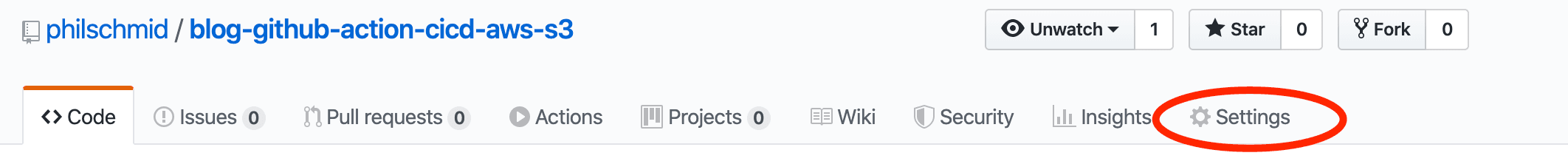

To add the secrets you have to go the “settings” tab of your repository.

Github Repository Naivgation

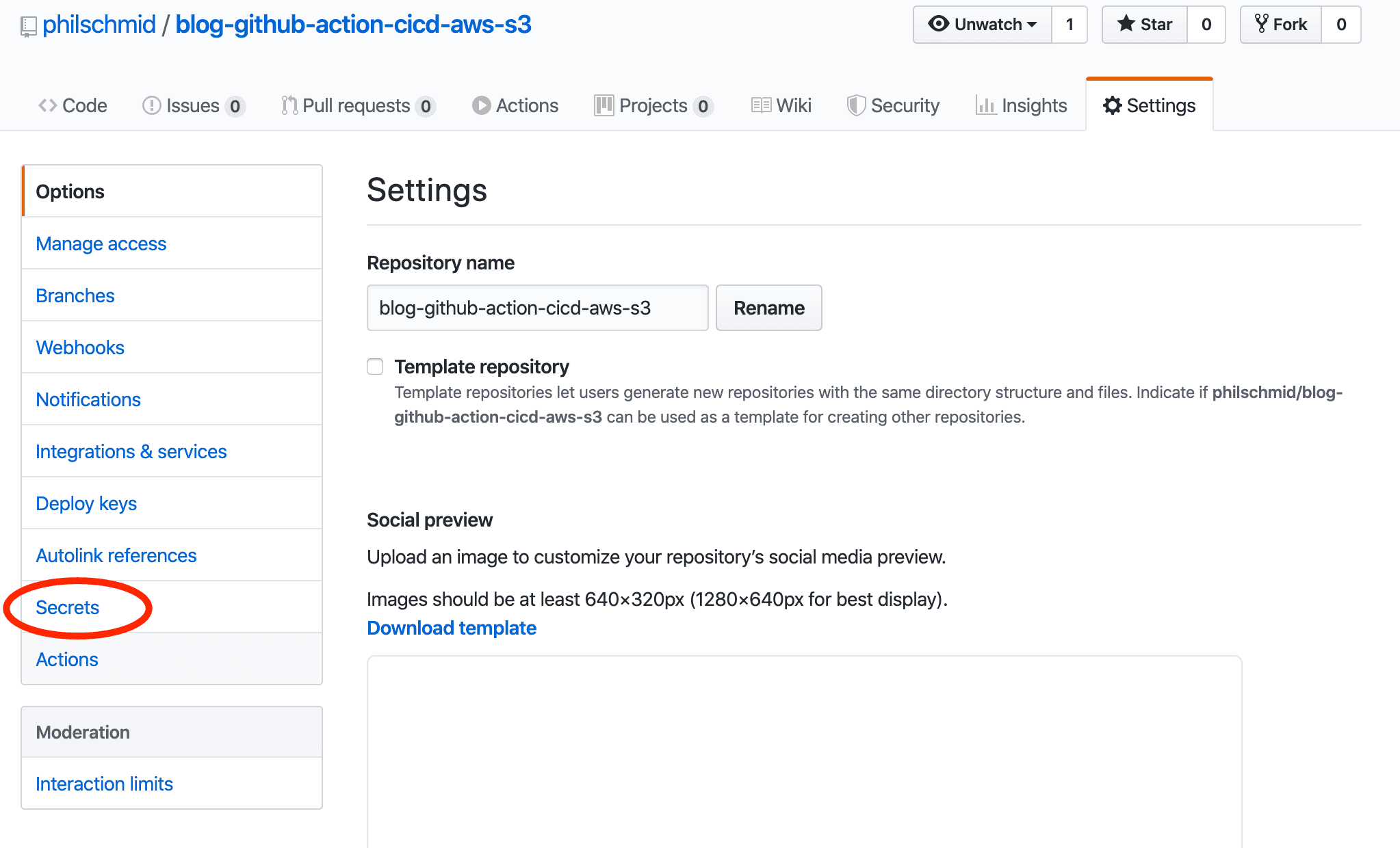

then go to secrets in the left navigation

Github Repository Settings

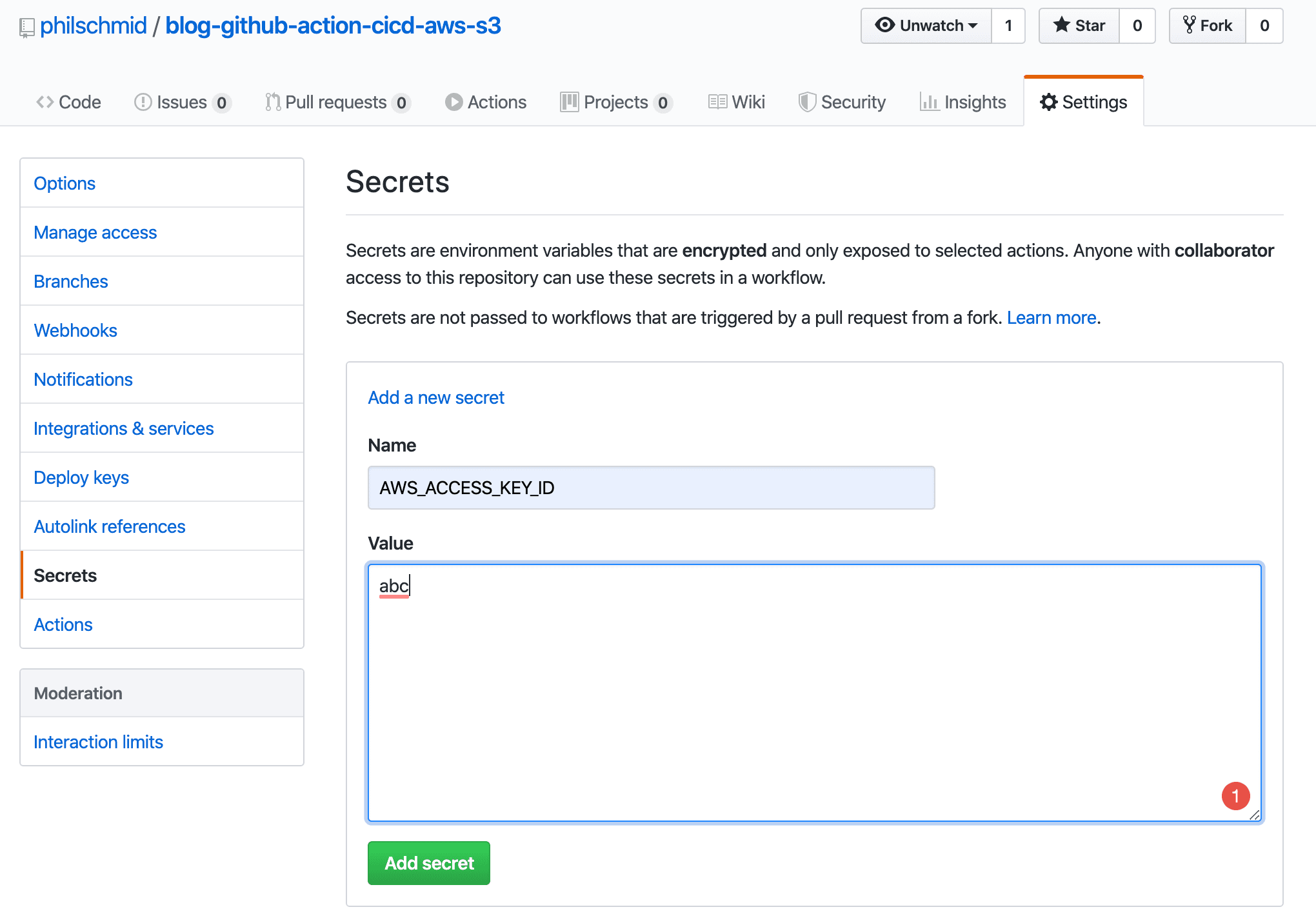

and on the secrets page, you can add your 2 secrets AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY.

Github Repository Secrets

Crab a coffee and enjoy it

Lastly, you have to create a pull request from a feature branch into master and watch your action deploying your app to s3 and creating a cache invalidation.

Github Action


I created a demo repository with a vue app as example. You can find the repository here. If something is unclear let me know and i will adjust it.
