A Amazon SageMaker Inference comparison with Hugging Face Transformers

#HuggingFace #AWS #BERT #SageMaker
, May 17, 2022 · 13 min read

Photo by Nathan Anderson on Unsplash

“Amazon SageMaker is a fully managed machine learning service. With SageMaker, data scientists and developers can quickly and easily build and train machine learning models, and then directly deploy them into a production-ready hosted environment.” - AWS Documentation

As of today, Amazon SageMaker offers 4 different inference options with:

Each of these inference options has different characteristics and use cases. Therefore we have created a table to compare the current existing SageMaker inference in latency, execution period, payload, size, and pricing and getting-started examples on how to use each of the inference options.

Comparison table

Optionlatency budgetexecution periodmax payload sizereal-world exampleaccelerators (GPU)pricing
real-timemillisecondsconstantly6MBroute estimationYesup time of the endpoint
batch transformhoursones a day/weekUnlimitednightly embedding jobsYesprediction (transform) time
async inferenceminutesevery few minutes/hours1GBpost-call transcriptionYesup time of the endpoint, can sacle to 0 when there is no load
serverlesssecondsevery few minutes6MBPoC for classificationNocompute time (serverless)

Examples

You will learn how to:

  1. Deploy a Hugging Face Transformers For Real-Time inference.
  2. Deploy a Hugging Face Transformers for Batch Transform Inference.
  3. Deploy a Hugging Face Transformers for Asynchronous Inference.
  4. Deploy a Hugging Face Transformers for Serverless Inference.

If you are going to use Sagemaker in a local environment (not SageMaker Studio or Notebook Instances). You need access to an IAM Role with the required permissions for Sagemaker. You can find here more about it.

Permissions

If you are going to use Sagemaker in a local environment. You need access to an IAM Role with the required permissions for Sagemaker. You can find here more about it.

1 !pip install "sagemaker>=2.48.0" --upgrade
2 import sagemaker
3 import boto3
4 sess = sagemaker.Session()
5 # sagemaker session bucket -> used for uploading data, models and logs
6 # sagemaker will automatically create this bucket if it not exists
7 sagemaker_session_bucket=None
8 if sagemaker_session_bucket is None and sess is not None:
9 # set to default bucket if a bucket name is not given
10 sagemaker_session_bucket = sess.default_bucket()
11
12 try:
13 role = sagemaker.get_execution_role()
14 except ValueError:
15 iam = boto3.client('iam')
16 role = iam.get_role(RoleName='sagemaker_execution_role')['Role']['Arn']
17
18 sess = sagemaker.Session(default_bucket=sagemaker_session_bucket)
19
20 print(f"sagemaker role arn: {role}")
21 print(f"sagemaker bucket: {sess.default_bucket()}")
22 print(f"sagemaker session region: {sess.boto_region_name}")

SageMaker Hugging Face Inference Toolkit

The SageMaker Hugging Face Inference Toolkit is an open-source library for serving 🤗 Transformers models on Amazon SageMaker. This library provides default pre-processing, predict and postprocessing for certain 🤗 Transformers models and tasks using the transformers pipelines. The Inference Toolkit accepts inputs in the inputs key, and supports additional pipelines parameters in the parameters key. You can provide any of the supported kwargs from pipelines as parameters.

Tasks supported by the Inference Toolkit API include:

  • text-classification
  • sentiment-analysis
  • token-classification
  • feature-extraction
  • fill-mask
  • summarization
  • translation_xx_to_yy
  • text2text-generation
  • text-generation
  • audio-classificatin
  • automatic-speech-recognition
  • conversational
  • image-classification
  • image-segmentation
  • object-detection
  • table-question-answering
  • zero-shot-classification
  • zero-shot-image-classification

See the following request examples for some of the tasks:

text-classification

1 {
2 "inputs": "Camera - You are awarded a SiPix Digital Camera! call 09061221066 fromm landline. Delivery within 28 days."
3 }

text-generation parameterized

1 {
2 "inputs": "Hugging Face, the winner of VentureBeat’s Innovation in Natural Language Process/Understanding Award for 2021, is looking to level the playing field. The team, launched by Clément Delangue and Julien Chaumond in 2016, was recognized for its work in democratizing NLP, the global market value for which is expected to hit $35.1 billion by 2026. This week, Google’s former head of Ethical AI Margaret Mitchell joined the team.",
3 "parameters": {
4 "repetition_penalty": 4.0,
5 "length_penalty": 1.5
6 }
7 }

More documentation and a list of supported tasks can be found in the documentation.

1. Deploy a Hugging Face Transformers For Real-Time inference.

What are Amazon SageMaker Real-Time Endpoints?

Real-time inference is ideal for inference workloads where you have real-time, interactive, low latency requirements. You can deploy your model to SageMaker hosting services and get an endpoint that can be used for inference. These endpoints are fully managed and support autoscaling.

Deploying a model using SageMaker hosting services is a three-step process:

  1. Create a model in SageMaker —By creating a model, you tell SageMaker where it can find the model components.
  2. Create an endpoint configuration for an HTTPS endpoint —You specify the name of one or more models in production variants and the ML compute instances that you want SageMaker to launch to host each production variant.
  3. Create an HTTPS endpoint —Provide the endpoint configuration to SageMaker. The service launches the ML compute instances and deploys the model or models as specified in the configuration

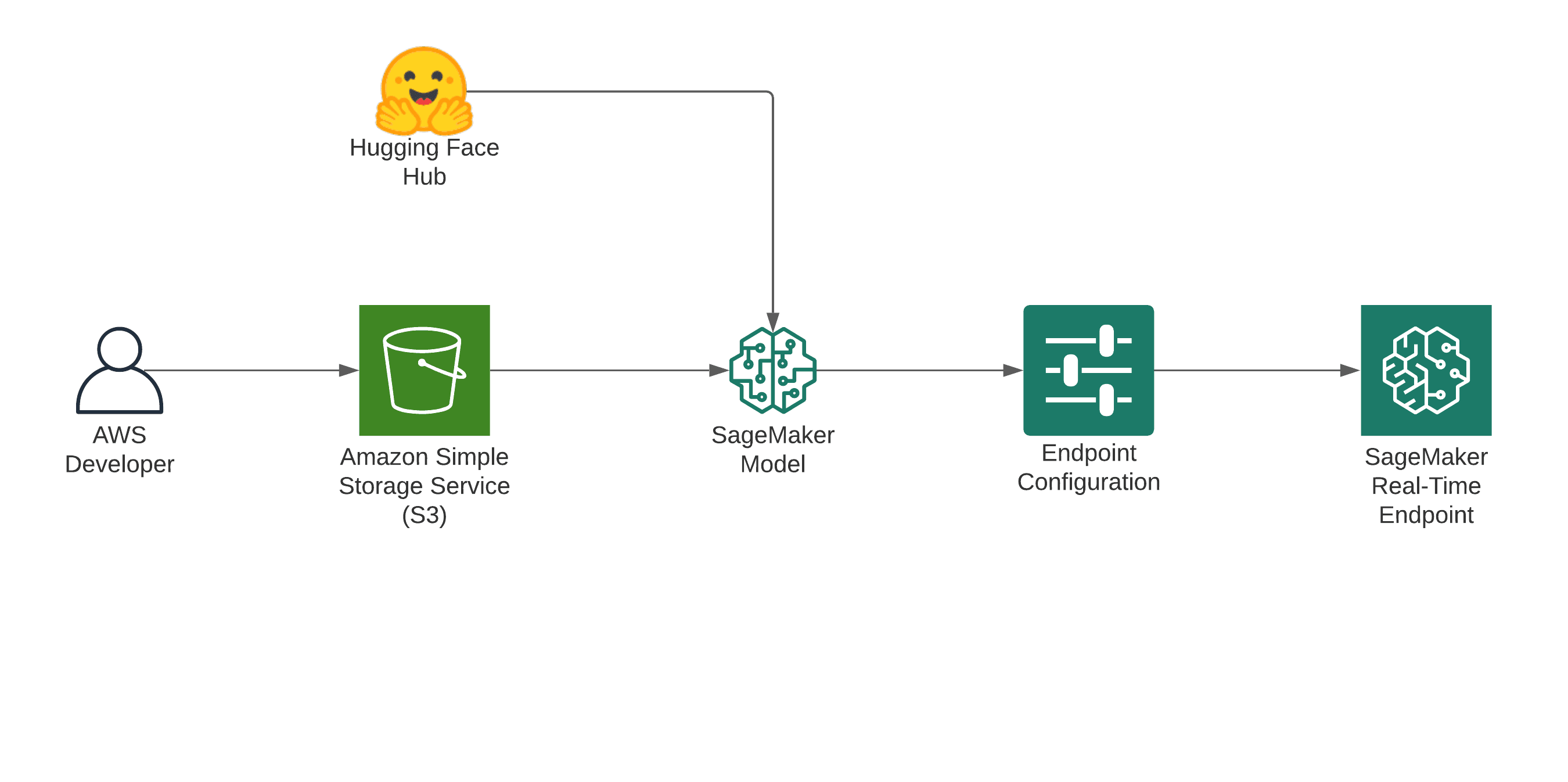

endpoint-overview

Deploy a Hugging Face Transformer from the Hub

Detailed Notebook: deploy_model_from_hf_hub

To deploy a model directly from the Hub to SageMaker we need to define 2 environment variables when creating the HuggingFaceModel . We need to define:

  • HF_MODEL_ID: defines the model id, which will be automatically loaded from huggingface.co/models when creating or SageMaker Endpoint. The 🤗 Hub provides +14 000 models all available through this environment variable.
  • HF_TASK: defines the task for the used 🤗 Transformers pipeline. A full list of tasks can be find here.
1 from sagemaker.huggingface import HuggingFaceModel
2
3 # Hub Model configuration. https://huggingface.co/models
4 hub = {
5 'HF_MODEL_ID':'distilbert-base-uncased-distilled-squad', # model_id from hf.co/models
6 'HF_TASK':'question-answering' # NLP task you want to use for predictions
7 }
8
9 # create Hugging Face Model Class
10 huggingface_model_rth = HuggingFaceModel(
11 env=hub, # hugging face hub configuration
12 role=role, # iam role with permissions to create an Endpoint
13 transformers_version="4.17", # transformers version used
14 pytorch_version="1.10", # pytorch version used
15 py_version="py38", # python version of the DLC
16 )
17
18 # deploy model to SageMaker Inference
19 predictor_rth = huggingface_model_rth.deploy(
20 initial_instance_count=1,
21 instance_type="ml.g4dn.xlarge"
22 )

After model is deployed we can use the predictor to send requests.

1 # example request, you always need to define "inputs"
2 data = {
3 "inputs": {
4 "question": "What is used for inference?",
5 "context": "My Name is Philipp and I live in Nuremberg. This model is used with sagemaker for inference."
6 }
7 }
8
9 # request
10 predictor_rth.predict(data)

We can easily delete the endpoint again with the following command:

1 # delete endpoint
2 predictor_rth.delete_model()
3 predictor_rth.delete_endpoint()

Deploy a Hugging Face Transformer from the Hub

Detailed Notebook: deploy_model_from_s3

To deploy a model directly from the Hub to SageMaker we need to define 2 environment variables when creating the HuggingFaceModel . We need to define:

  • HF_MODEL_ID: defines the model id, which will be automatically loaded from huggingface.co/models when creating or SageMaker Endpoint. The 🤗 Hub provides +14 000 models all available through this environment variable.
  • HF_TASK: defines the task for the used 🤗 Transformers pipeline. A full list of tasks can be find here.
1 from sagemaker.huggingface import HuggingFaceModel
2
3
4 # create Hugging Face Model Class
5 huggingface_model_rts3 = HuggingFaceModel(
6 model_data="s3://hf-sagemaker-inference/model.tar.gz", # path to your trained sagemaker model
7 role=role, # iam role with permissions to create an Endpoint
8 transformers_version="4.17", # transformers version used
9 pytorch_version="1.10", # pytorch version used
10 py_version="py38", # python version of the DLC
11 )
12
13 # deploy model to SageMaker Inference
14 predictor_rts3 = huggingface_model_rts3.deploy(
15 initial_instance_count=1,
16 instance_type="ml.m5.xlarge"
17 )

After model is deployed we can use the predictor to send requests.

1 # example request, you always need to define "inputs"
2 data = {
3 "inputs": "The new Hugging Face SageMaker DLC makes it super easy to deploy models in production. I love it!"
4 }
5
6 # request
7 predictor_rts3.predict(data)
8 # [{'label': 'POSITIVE', 'score': 0.9996660947799683}]

We can easily delete the endpoint again with the following command:

1 # delete endpoint
2 predictor_rts3.delete_model()
3 predictor_rts3.delete_endpoint()

2. Deploy a Hugging Face Transformers for Batch Transform Inference.

Detailed Notebook: batch_transform_inference

What is Amazon SageMaker Batch Transform?

A Batch transform job uses a trained model to get inferences on a dataset and saves these results to an Amazon S3 location that you specify. Similar to real-time hosting it creates a web server that takes in HTTP POST but additionally a Agent. The Agent reads the data from Amazon S3 and sends it to the web server and stores the prediction at the end back to Amazon S3. The benefit of Batch Transform is that the instances are only used during the “job” and stopped afterwards.

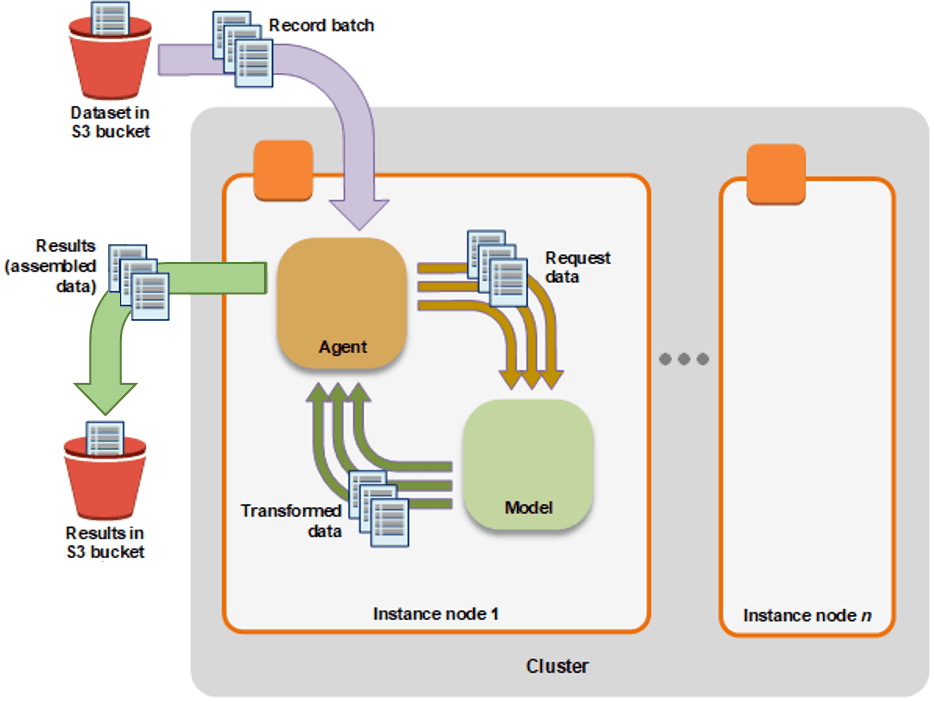

batch-transform

Use batch transform when you:

  • Want to get inferences for an entire dataset and index them to serve inferences in real time
  • Don’t need a persistent endpoint that applications (for example, web or mobile apps) can call to get inferences
  • Don’t need the subsecond latency that SageMaker hosted endpoints provide
1 from sagemaker.huggingface import HuggingFaceModel
2 from sagemaker.s3 import S3Uploader,s3_path_join
3
4
5 dataset_jsonl_file="./tweet_data.jsonl"
6 # uploads a given file to S3.
7 input_s3_path = s3_path_join("s3://",sagemaker_session_bucket,"london/batch_transform/input")
8 output_s3_path = s3_path_join("s3://",sagemaker_session_bucket,"london/batch_transform/output")
9 s3_file_uri = S3Uploader.upload(dataset_jsonl_file,input_s3_path)
10
11 print(f"{dataset_jsonl_file} uploaded to {s3_file_uri}")
12
13 # Hub Model configuration. https://huggingface.co/models
14 hub = {
15 'HF_MODEL_ID':'cardiffnlp/twitter-roberta-base-sentiment',
16 'HF_TASK':'text-classification'
17 }
18
19 # create Hugging Face Model Class
20 huggingface_model = HuggingFaceModel(
21 env=hub, # configuration for loading model from Hub
22 role=role, # iam role with permissions to create an Endpoint
23 transformers_version="4.17", # transformers version used
24 pytorch_version="1.10", # pytorch version used
25 py_version='py38', # python version used
26 )
27
28 # create Transformer to run our batch job
29 batch_job = huggingface_model.transformer(
30 instance_count=1, # number of instances used for running the batch job
31 instance_type='ml.m5.xlarge',# instance type for the batch job
32 output_path=output_s3_path, # we are using the same s3 path to save the output with the input
33 strategy='SingleRecord') # How we are sending the "requests" to the endpoint
34
35 # starts batch transform job and uses s3 data as input
36 batch_job.transform(
37 data=s3_file_uri, # preprocessed file location on s3
38 content_type='application/json',# mime-type of the file
39 split_type='Line') # how the datapoints are split, here lines since it is `.jsonl`

3. Deploy a Hugging Face Transformers for Asynchronous Inference.

Detailed Notebook: async_inference_hf_hub

What is Amazon SageMaker Asynchronous Inference?

Amazon SageMaker Asynchronous Inference is a new capability in SageMaker that queues incoming requests and processes them asynchronously. Compared to Batch Transform Asynchronous Inference provides immediate access to the results of the inference job rather than waiting for the job to complete.

async-inference

Whats the difference between batch transform & real-time inference:

  • request will be uploaded to Amazon S3 and the Amazon S3 URI is passed in the request
  • are always up and running but can scale to zero to save costs
  • responses are also uploaded to Amazon S3 again.
  • you can create a Amazon SNS topic to recieve notifications when predictions are finished
1 from sagemaker.huggingface.model import HuggingFaceModel
2 from sagemaker.async_inference.async_inference_config import AsyncInferenceConfig
3 from sagemaker.s3 import s3_path_join
4
5 # Hub Model configuration. <https://huggingface.co/models>
6 hub = {
7 'HF_MODEL_ID':'distilbert-base-uncased-finetuned-sst-2-english',
8 'HF_TASK':'text-classification'
9 }
10
11 # create Hugging Face Model Class
12 huggingface_model_async = HuggingFaceModel(
13 env=hub, # configuration for loading model from Hub
14 role=role, # iam role with permissions to create an Endpoint
15 transformers_version="4.17", # transformers version used
16 pytorch_version="1.10", # pytorch version used
17 py_version='py38', # python version used
18 )
19
20 # create async endpoint configuration
21 async_config = AsyncInferenceConfig(
22 output_path=s3_path_join("s3://",sagemaker_session_bucket,"async_inference/output") , # Where our results will be stored
23 # notification_config={
24 # "SuccessTopic": "arn:aws:sns:us-east-2:123456789012:MyTopic",
25 # "ErrorTopic": "arn:aws:sns:us-east-2:123456789012:MyTopic",
26 # }, # Notification configuration
27 )
28
29 # deploy the endpoint endpoint
30 async_predictor = huggingface_model_async.deploy(
31 initial_instance_count=1,
32 instance_type="ml.g4dn.xlarge",
33 async_inference_config=async_config
34 )

The predict() will upload our data to Amazon S3 and run inference against it. Since we are using predict it will block until the inference is complete.

1 data = {
2 "inputs": [
3 "it 's a charming and often affecting journey .",
4 "it 's slow -- very , very slow",
5 "the mesmerizing performances of the leads keep the film grounded and keep the audience riveted .",
6 "the emotions are raw and will strike a nerve with anyone who 's ever had family trauma ."
7 ]
8 }
9
10 res = async_predictor.predict(data=data)
11 print(res)
12 # [{'label': 'POSITIVE', 'score': 0.9998838901519775}, {'label': 'NEGATIVE', 'score': 0.999727189540863}, {'label': 'POSITIVE', 'score': 0.9998838901519775}, {'label': 'POSITIVE', 'score': 0.9994854927062988}]

We can easily delete the endpoint again with the following command:

1 # delete endpoint
2 async_predictor.delete_model()
3 async_predictor.delete_endpoint()

4. Deploy a Hugging Face Transformers for Serverless Inference.

Detailed Notebook: serverless_inference

What is Amazon SageMaker Serverless Inference?

Amazon SageMaker Serverless Inference is a purpose-built inference option that makes it easy for you to deploy and scale ML models. Serverless Inference is ideal for workloads which have idle periods between traffic spurts and can tolerate cold starts. Serverless endpoints automatically launch compute resources and scale them in and out depending on traffic, eliminating the need to choose instance types or manage scaling policies. This takes away the undifferentiated heavy lifting of selecting and managing servers. Serverless Inference integrates with AWS Lambda to offer you high availability, built-in fault tolerance and automatic scaling.

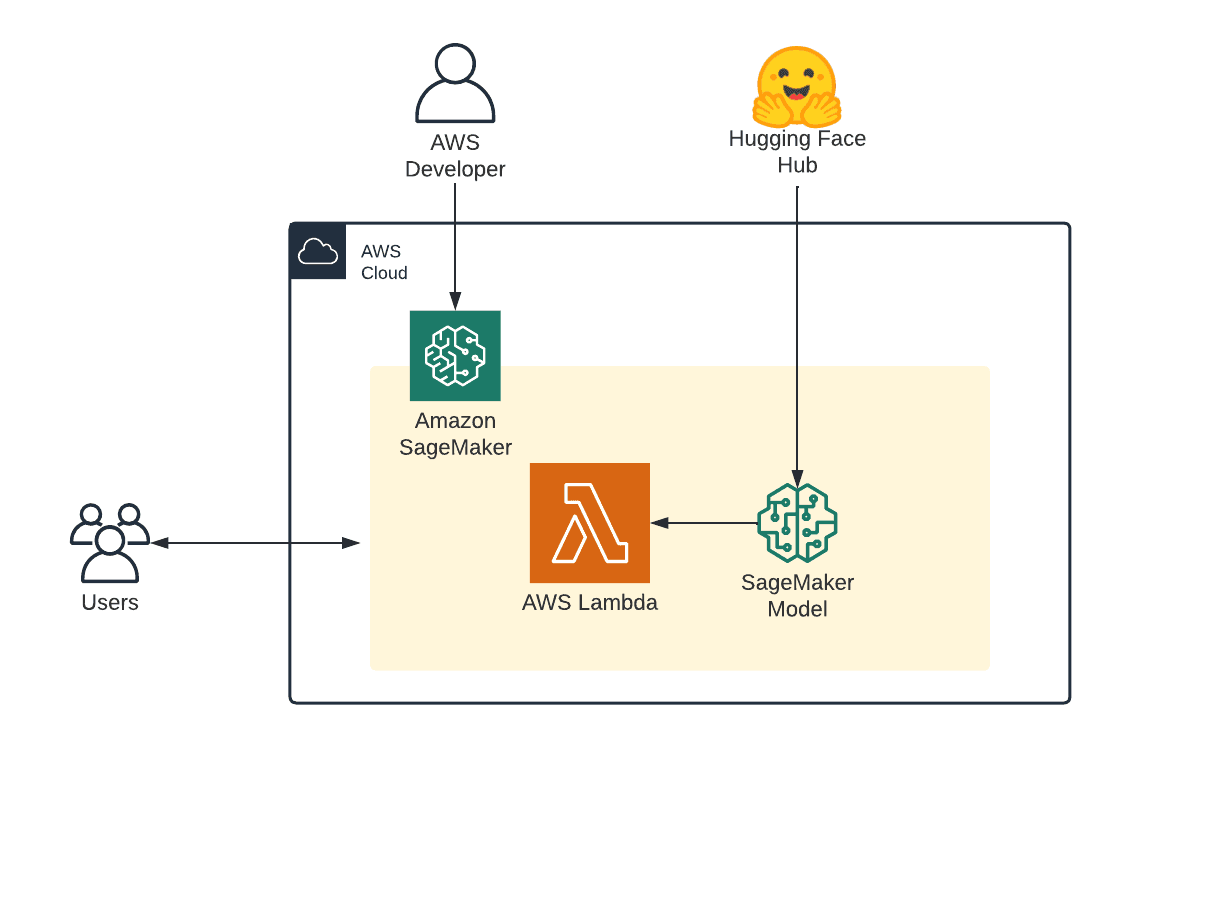

serverless

Use Severless Inference when you:

  • Want to get started quickly in a cost-effective way
  • Don’t need the subsecond latency that SageMaker hosted endpoints provide
  • proofs-of-concept where cold starts or scalability is not mission-critical
1 from sagemaker.huggingface.model import HuggingFaceModel
2 from sagemaker.serverless import ServerlessInferenceConfig
3 from sagemaker.serializers import DataSerializer
4
5 # Hub Model configuration. <https://huggingface.co/models>
6 hub = {
7 'HF_MODEL_ID':'facebook/wav2vec2-base-960h',
8 'HF_TASK':'automatic-speech-recognition',
9 }
10
11 # create Hugging Face Model Class
12 huggingface_model_sls = HuggingFaceModel(
13 env=hub, # configuration for loading model from Hub
14 role=role, # iam role with permissions to create an Endpoint
15 transformers_version="4.17", # transformers version used
16 pytorch_version="1.10", # pytorch version used
17 py_version='py38', # python version used
18 )
19
20 # Specify MemorySizeInMB and MaxConcurrency in the serverless config object
21 serverless_config = ServerlessInferenceConfig(
22 memory_size_in_mb=4096, max_concurrency=10,
23 )
24
25 # create a serializer for the data
26 audio_serializer = DataSerializer(content_type='audio/x-audio') # using x-audio to support multiple audio formats
27
28
29 # deploy the endpoint endpoint
30 predictor_sls = huggingface_model_sls.deploy(
31 serverless_inference_config=serverless_config,
32 serializer=audio_serializer, # serializer for our audio data.
33 )
1 !wget https://cdn-media.huggingface.co/speech_samples/sample1.flac
2
3 audio_path = "sample1.flac"
4
5 res = predictor_sls.predict(data=audio_path)
6 print(res)
7 # {'text': "GOING ALONG SLUSHY COUNTRY ROADS AND SPEAKING TO DAMP AUDIENCES IN DRAUGHTY SCHOOL ROOMS DAY AFTER DAY FOR A FORTNIGHT HE'LL HAVE TO PUT IN AN APPEARANCE AT SOME PLACE OF WORSHIP ON SUNDAY MORNING AND HE CAN COME TO US IMMEDIATELY AFTERWARDS"}

We can easily delete the endpoint again with the following command:

1 # delete endpoint
2 predictor_sls.delete_model()
3 predictor_sls.delete_endpoint()

Conclusion

Every current available inference option has a good use case and allows companies to optimize their machine learning workloads in the best possible way. Not only that with the addition of SageMaker Serverless companies can now quickly built cost-effective proof-of-concepts and move them after success to real-time endpoints by changing 1 line of code.

Furthermore, this article has shown how easy it is to get started with Hugging Face Transformers on Amazon Sagemaker and how you can integrate state-of-the-art machine learning into existing applications.

Thanks for reading! If you have any questions, feel free to contact me, through Github, or on the forum. You can also connect with me on Twitter or LinkedIn.
